AxonLLM
The Neural Control Plane
Open Source · MIT-0 · Python 3.11+

One API.
Every model. Full control.

AxonLLM is the neural control plane for enterprise LLMs. Point your existing OpenAI SDK at it and get intent-aware routing across 13 providers, hierarchy-driven budgets that block before you overspend, and one audit trail for all of it.

Start Guided Showcase Open Seeded Dashboard

Local non-production demo seeded with Acme Corp, projects, users, policies, usage, and audit history.

AxonLLM control plane · Acme Corp Seeded demo

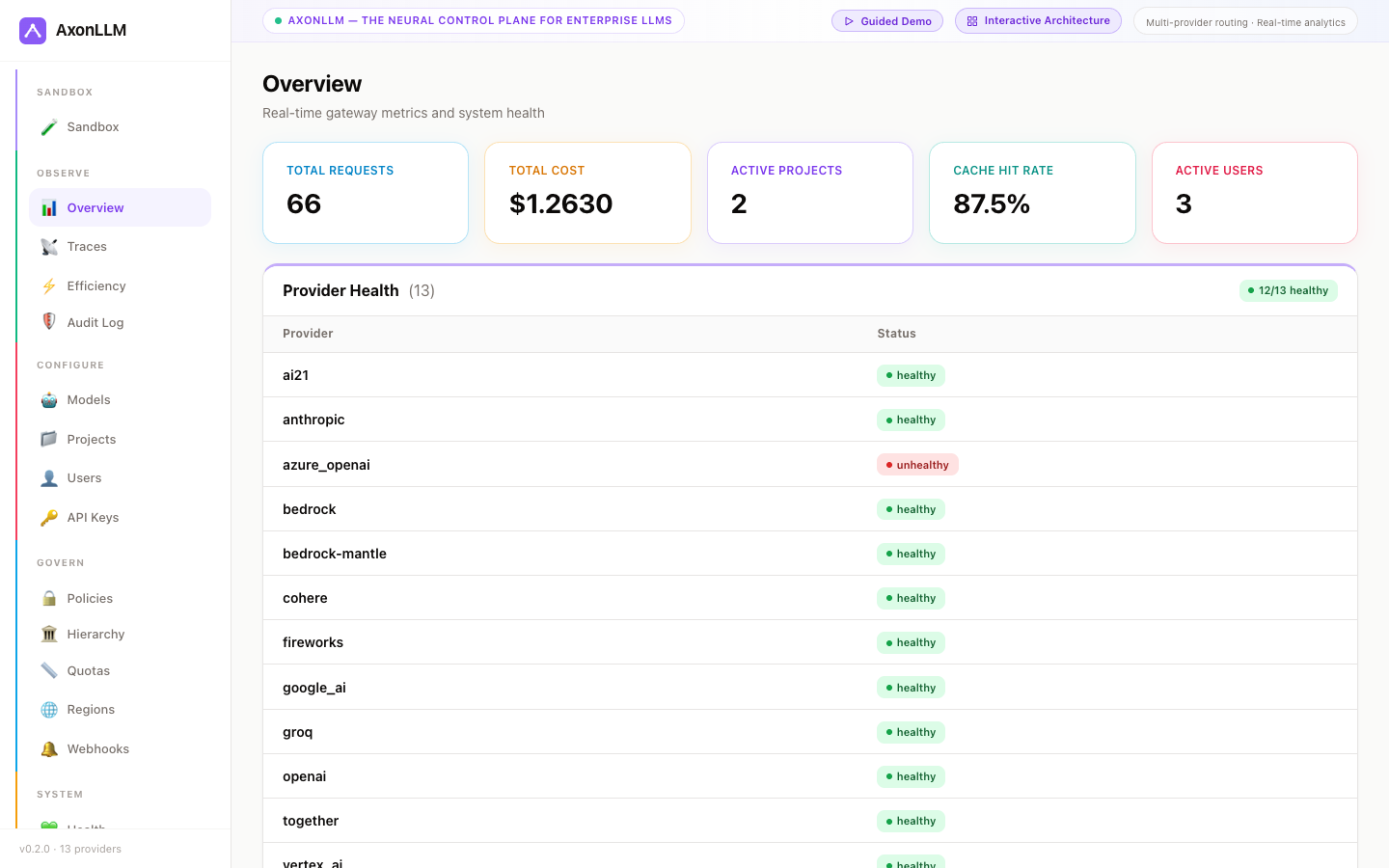

AxonLLM seeded dashboard showing populated gateway metrics, spend, projects, users, and provider activity
13
Provider adapters
51
Models configured
6
Routing strategies
4,600
Tests passing

Interactive Architecture

Follow the decision, not just the arrow

Play four real request paths: smart multi-provider routing, provider fallback, governed Athena SELECT, and tenant-admin RBAC.

Full Architecture

How It Works

Fifteen steps, one request

Every call runs the same pipeline. Guardrails and quotas are checked before a provider is billed, not after.

Client                      AxonLLM                              Providers

  POST /v1/chat/completions
       |
       |------> Validate --> Injection Scan --> PII Redact
       |                              |                  |
       |                        score: 12          [EMAIL_1]
       |                              |
       |                        Quota Hierarchy
       |                        +-----------------------------------------+
       |                        |  org --> business unit --> project --> env |
       |                        |  rpm, budget, max_tokens, allowed models  |
       |                        +-----------------------------------------+
       |                              |
       |                     within budget
       |                              |
       |                        Classifier --> task: math  (conf 1.00)
       |                              |
       |                        Router
       |                        +-----------------------------------------+
       |                        |  benchmark score  x  cost  =  ranking   |
       |                        |  70% quality / 30% cost, configurable   |
       |                        +-----------------------------------------+
       |                              |
       |                     picked: claude-sonnet via bedrock
       |                              |                                  |
       |                              +----------------------------------> completion
       |                                                                 |
       |                        PII Re-inject <---------------------------+
       |                              |
       |                        Cost + Audit  (SHA-256 hash chain)
       |                              |
       +<-----------------------------+  200 OK  +  usage  +  routing trace

  On provider failure: fall back down the chain. Mid-stream, no switch —
  the client already has bytes, so the error surfaces honestly instead.

Capabilities

A gateway, not a proxy

Forwarding requests is the easy part. The value is in everything that happens around the forward.

⚡

Smart Routing

A classifier reads the prompt's intent — math, coding, reasoning, summarization, creative writing — and ranks candidates by benchmark score against cost. An unpriced model scores as unknown, not free, so it can't win for being unmeasured.

🎭

Ensemble Mode

Scatter one prompt across a panel of models, gather the survivors, and have a judge model synthesize the answer. Configurable quorum, cost ceiling, and best-single fallback when the panel comes up short.

🔑

Tool Calling, Translated

Write one OpenAI-shaped tool definition. Each adapter translates it into its provider's own dialect — Anthropic input_schema, Bedrock toolSpec, Gemini functionDeclarations, Cohere parameter_definitions — and translates the call back.

💰

Budgets That Block

Policy hierarchy from org down to environment, where a child can only tighten what it inherits. Rate limits, spend caps, token ceilings and model allow-lists all resolve from the same tree — and stop a request before it bills.

🛡

Guardrails Both Ways

PII is redacted before the model sees the prompt and re-injected into the response — including across streaming chunk boundaries, where the placeholder can split in half. Prompt injection is scored on the way in.

📜

Tamper-Evident Audit

Every request lands in a SHA-256 hash chain with DynamoDB persistence, so a deleted or edited record breaks the chain visibly instead of quietly.

🌐

Multi-Region Failover

Hub-and-spoke across regions: single, active-passive, or active-active with weighted distribution. Strict data-residency mode filters spokes by zone so in-region data stays in region.

👤

Enterprise Identity

ALB OIDC, bearer tokens, and scoped API keys. Cognito validates enterprise SAML and the gateway resolves its OIDC result through canonical tenant authority. SCIM 2.0 handles joiner/mover/leaver provisioning.

📊

Efficiency Analytics

Per-user profiles from real usage: dominant task type, typical vs. optimal model, prompt-quality scoring, and where tokens are being wasted on over-provisioned models or bloated conversation history.

Quick Start

Change one line

AxonLLM speaks the OpenAI wire format at /v1. Existing code moves over by changing base_url — no reshaping requests, no new SDK. Routing, quotas, guardrails and cost attribution all still apply.

main.py
from openai import OpenAI

client = OpenAI(
    base_url="http://localhost:8000/v1",   # AxonLLM, not api.openai.com
    api_key="axon_your_key_here",          # an AxonLLM key
)

# Any model in the registry — the gateway picks the provider
resp = client.chat.completions.create(
    model="claude-sonnet",
    messages=[{"role": "user", "content": "Explain CRDTs"}],
)

# Or let the classifier choose the model for you
resp = client.chat.completions.create(
    model="",                              # empty = smart routing
    messages=[{"role": "user", "content": "what is 4!"}],
)

# Or ask a panel and have a judge synthesize the answer
resp = client.chat.completions.create(
    model="ensemble:quality",
    messages=[{"role": "user", "content": "Explain CRDTs"}],
)

Routing Modes

Pick a model, or don't

The same endpoint serves all three. The model field decides which one you get.

model: "claude-sonnet"
Direct

You name the model; AxonLLM picks the provider and falls back down the chain on failure. Round-robin, weighted, least-latency or cost-optimized distribution across 55 mappings and 51 configured models; 46 models are production-price-ready with shipped pricing.

1× the cost of one call
model: ""
Smart

The classifier reads intent and the router ranks candidates on benchmark score blended with real price — resolved from the same table that bills you, so the cost used to choose can't disagree with the cost charged.

1× plus sub-millisecond classification
model: "ensemble:quality"
Ensemble

A panel answers in parallel, a judge synthesizes. Quorum decides how many must survive; a cost ceiling caps the blast radius; best-single fallback returns the strongest answer rather than an error.

N+1× — panel size plus the judge
Measured, not assumed

The published frozen 60-prompt test measures classification accuracy, p50/p95 latency, LLM escalation rate, token usage, and direct router cost. Hybrid routing reached 95.0% accuracy while escalating 28.3% of prompts.

View Benchmark

Providers

Thirteen adapters, one wire format

Each provider gets a real translation layer, not a lowest-common-denominator passthrough. Bedrock and Bedrock Mantle authenticate through AWS credentials, so they work with no API key at all.

BR
Bedrock
MT
Mantle
A
Anthropic
O
OpenAI
AZ
Azure
V
Vertex AI
G
Google AI
C
Cohere
21
AI21
F
Fireworks
GQ
Groq
T
Together
X
xAI

Readiness

The failures that don't raise

The dangerous misconfigurations aren't the ones that 500. They're the ones that serve traffic happily while being wrong. AxonLLM ships a checklist for the class of bug that leaves no error in any log.

What's wrong What you see Why nobody notices
Model has no price $0.00 spend Requests succeed. A budget cap on a free-looking model can never trigger. The dashboard renders a number; it's just the wrong one.
Provider retired a model id 200 OK An undocumented alias answers. You're billed for a different model than you asked for — and aliases appear on no price list, so it bills $0.00 too.
Credentials missing clean boot No warning logged. Uncredentialled providers are dropped without raising. Invisible until a request happens to route there.
AXON_AUTH_MODE=LOG_ONLY 200 OK Every request is served. The log records a denial that never happened, so the audit trail reads like the control is working.
Demo data loaded healthy metrics A populated dashboard. Fabricated spend in a real deployment, because the container's default seeds it.
Persistence unreachable 200 OK Requests succeed normally. DynamoDB writes are swallowed by design — a provider call shouldn't 500 over a Dynamo hiccup — so billing records vanish silently.

A check that couldn't run reports UNKNOWN, never PASS — collapsing those is exactly how an expired credential renders as a green checklist. And nothing here is enforced: no check can refuse a boot or reject a request, because a readiness page that can take down a deployment is one nobody enables.

Put a control plane in front of it

Open source under MIT-0. One docker compose up to a working gateway.

Open the Dashboard Get Started
$ git clone … && docker compose up
